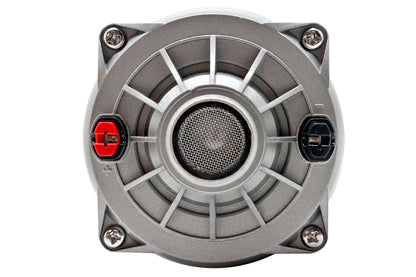

HDX-2 Tweeter

440,00 kr

440,00 kr

Prices include tax in EU & UK. Shipping calculated at checkout.

Sold per piece.

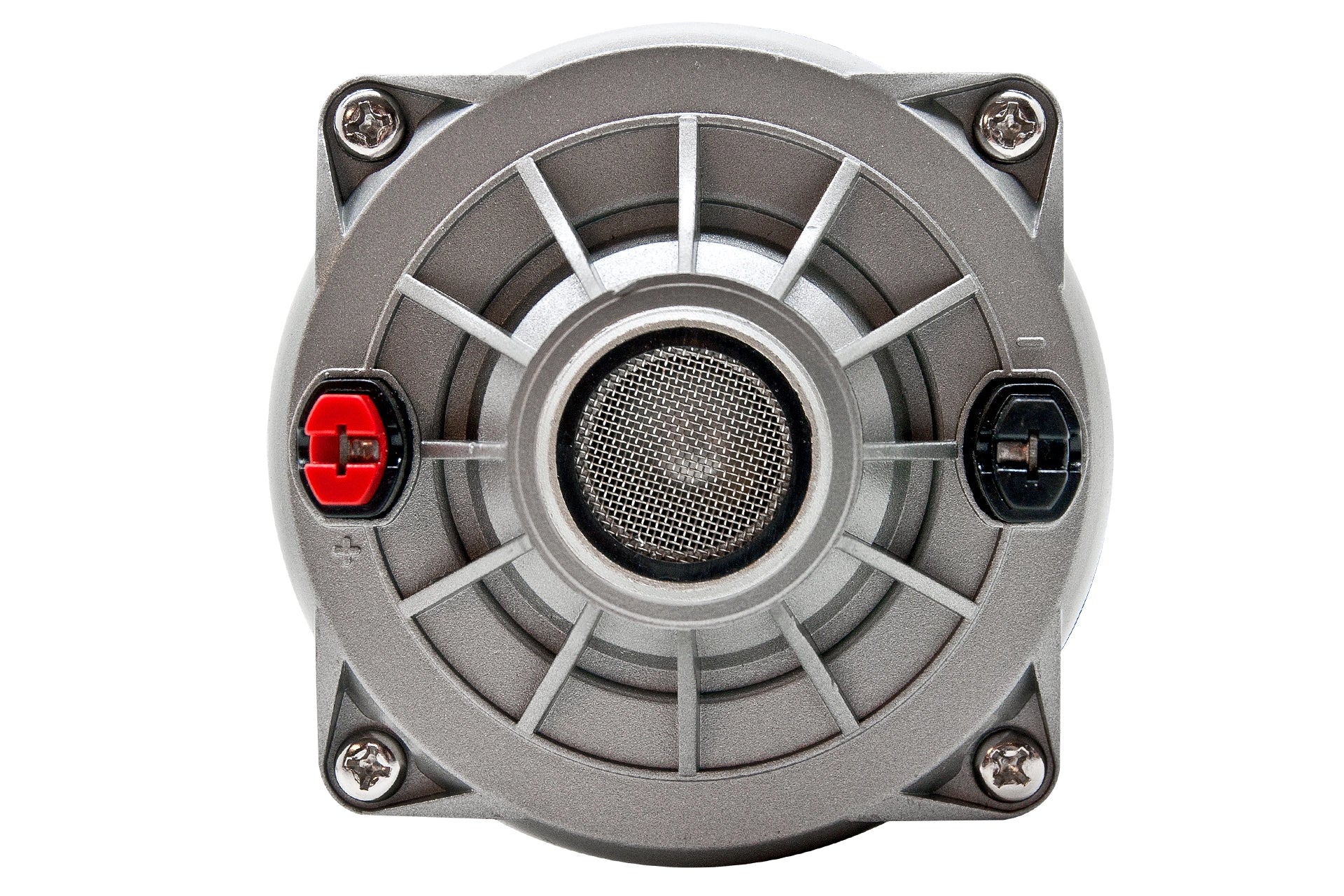

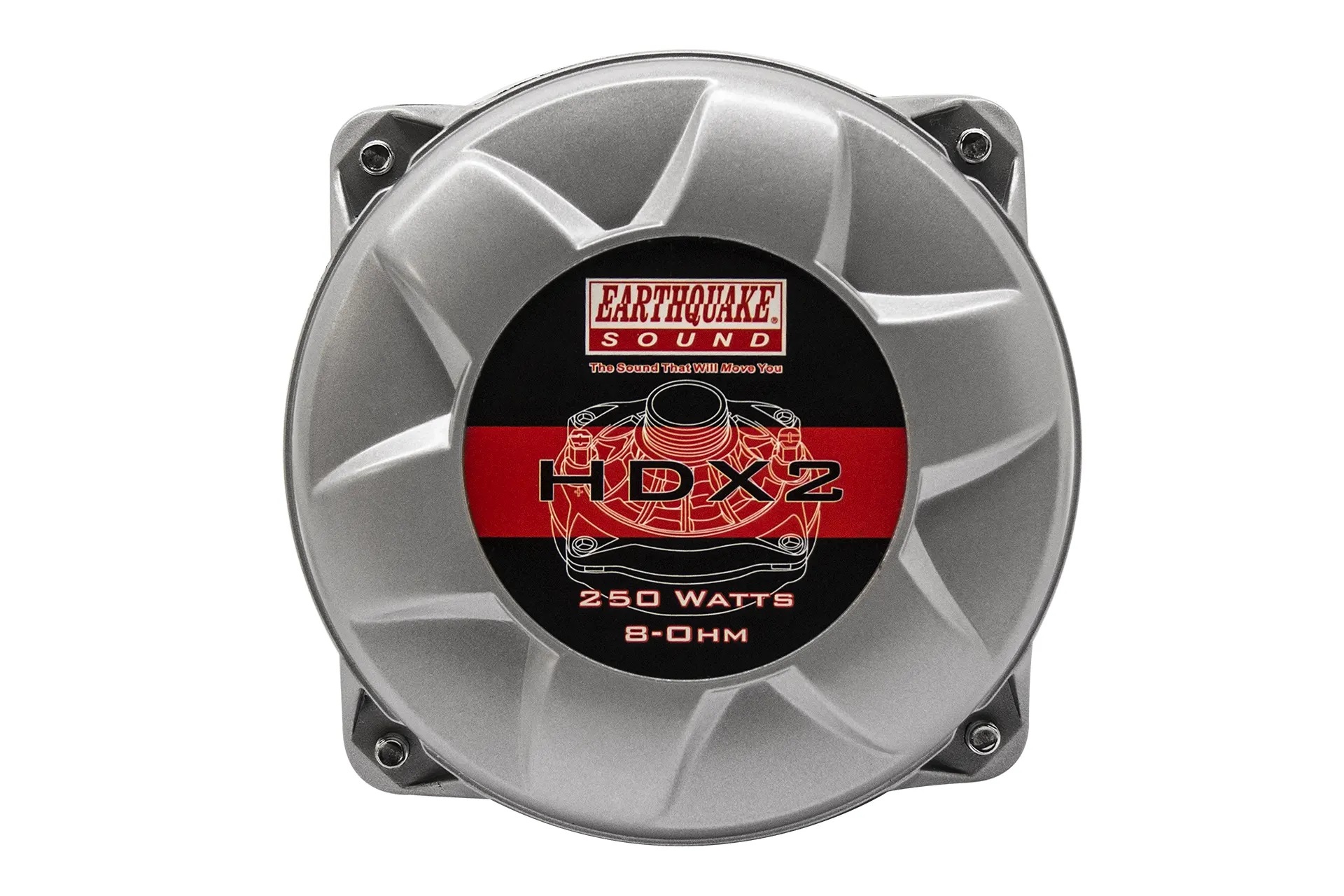

HDX-2 Horn Tweeter | Professional Midrange Driver

Earthquake’s Horn Tweeter is used for midrange applications. Its phenolic diaphragm produces high fidelity sound throughout midrange frequencies.

SKU: HDX-2

EAN: 0168975910363

Collections:

440,00 kr

440,00 kr

Specifications
Model Name: HDX-2
EAN: 0168975910363

Frequency Response: 400Hz - 9kHz
MAX Power: 250W
Nominal Impedance: 8 ohm
Sensitivity: 107dB
Voice Coil Diameter: 2" / 50.8 mm

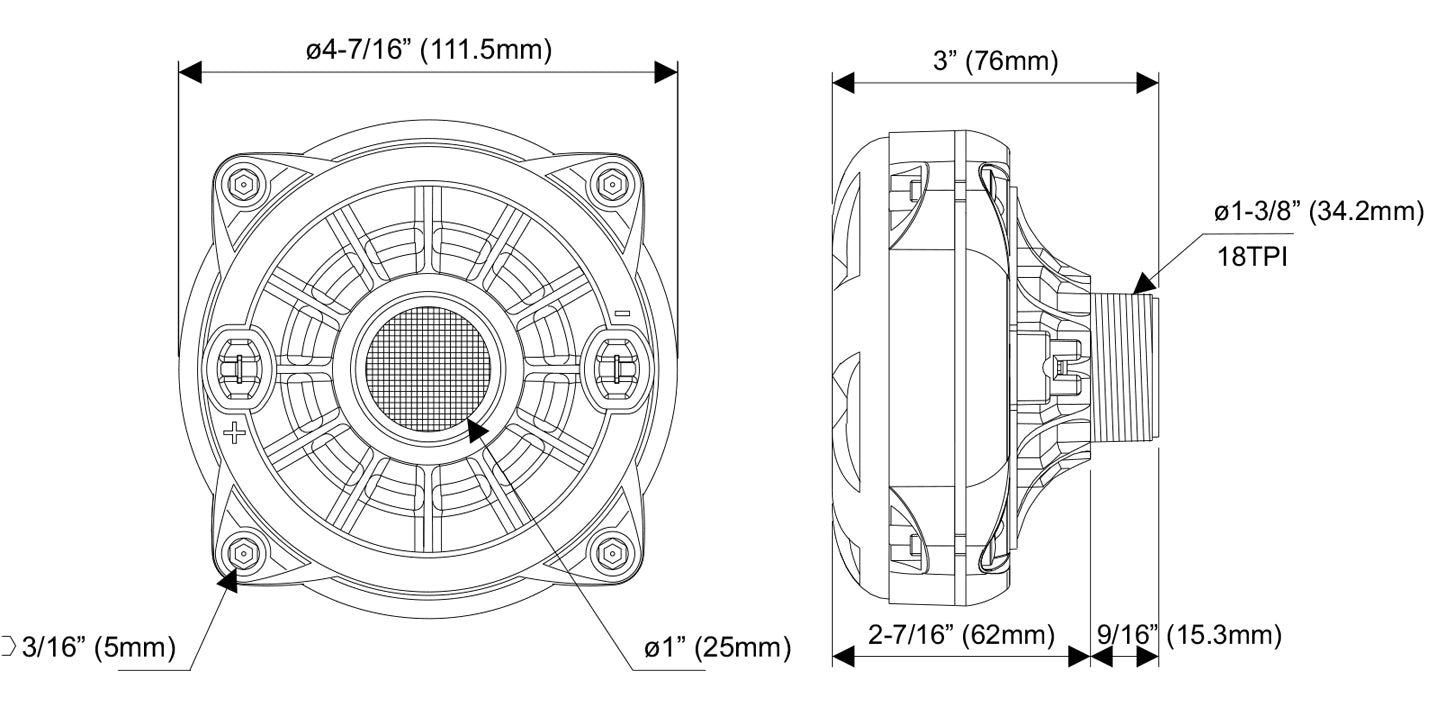

Dimensions

Height: 151 mm
Width: 151 mm
Depth: 253 mm
Throat Diameter: 34.2 mm

Parameters

Fs: 671 Hz
Qms: 6.33
Qes: 5.17
Qts: 2.85
Re: 6.43 ohm

Box Dimensions: 10 × 13 × 13 cm
Box Weight: 1.7 kg

Diecast aluminum housing
High Sensitivity
Kapton copper voice coil
Low Distortion
Optional Replacement Voice Coil Available
Smooth Response

HDX-2 Manual (ENG)

Frequency & Impedance Graph for HDX-2

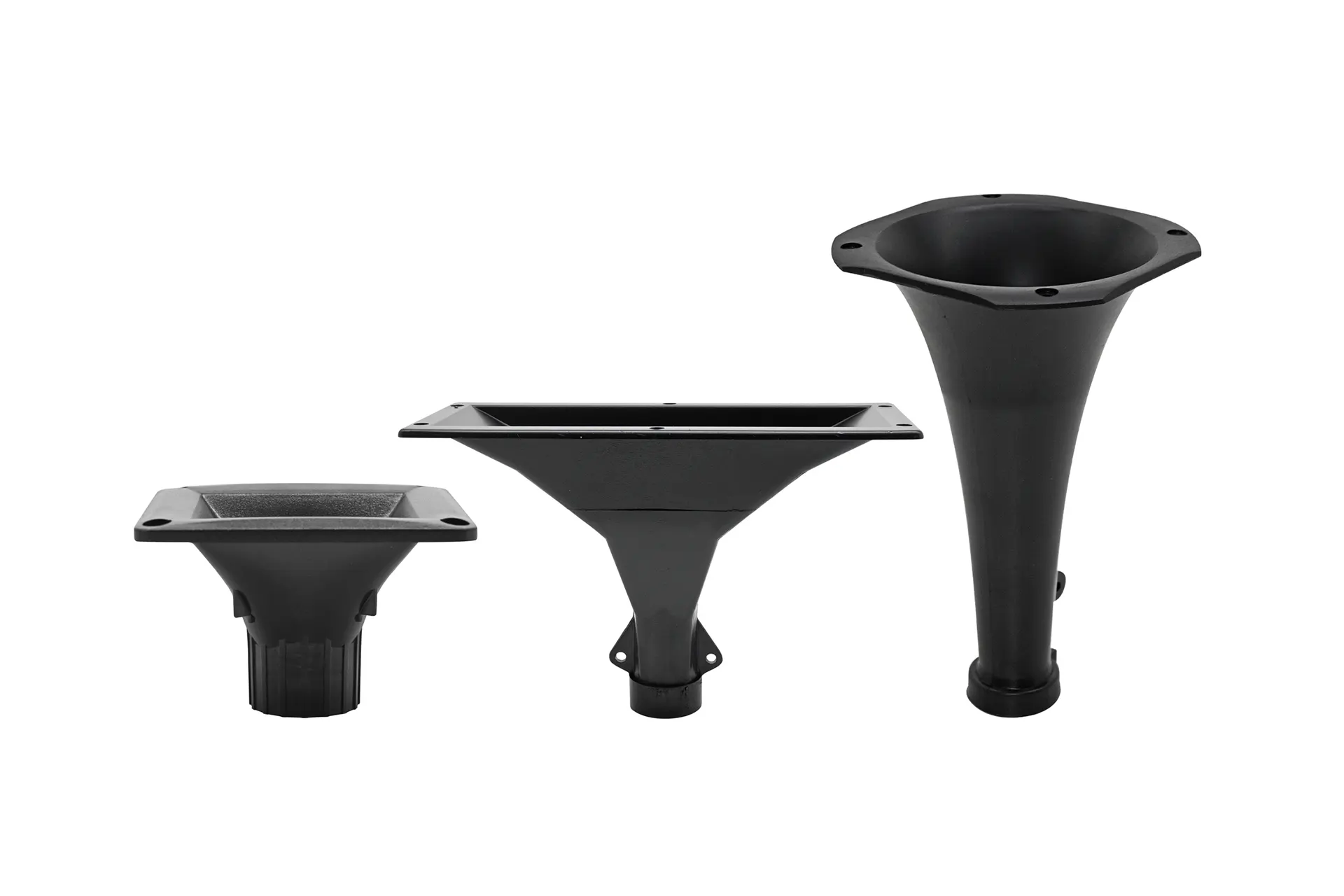

Frequency & Impedance Graph for HDX-2 & EQH-11-25

Frequency & Impedance Graph for HDX-2 & EQH-318

Frequency & Impedance Graph for HDX-2 & EQH-326
