SBT-200 Tweeter

285,00 kr

285,00 kr

Prices include tax in EU & UK. Shipping calculated at checkout.

Sold per piece.

SBT-200 Super Bullet Tweeter

The SBT-200 Super Bullet Tweeter delivers smooth, exceptional detail and clarity in the high frequencies to your system.

SKU: SBT-200

EAN: 0168975910578

Collections:

285,00 kr

285,00 kr

Specifications
Model Name: SBT-200
EAN: 0168975910578

Frequency Response: 2.5kHz - 22kHz
MAX Power: 200W
Nominal Impedance: 8 ohm
Sensitivity: 105 dB
Voice Coil Diameter: 1.8" / 46.2mm

Parameters

Fs: 2014 Hz
Qms: 6.51
Qes: 8.89
Qts: 3.58
Re: 5.65 ohm

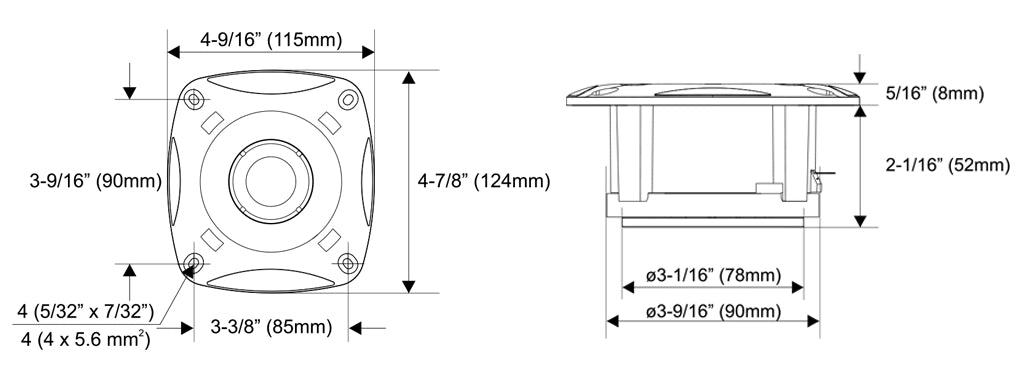

Box Dimensions: 7 × 13 × 13 cm
Box Weight: 0.875 kg

7.9oz Barium Ferrite Magnet
Copper voice coil
Durable plastic tweeter casing
Optional Replacement Voice Coil Available

SBT-200 Manual (ENG)

SBT-200 Product Release (ENG)

Frequency & Impedance Graph for SBT-200
