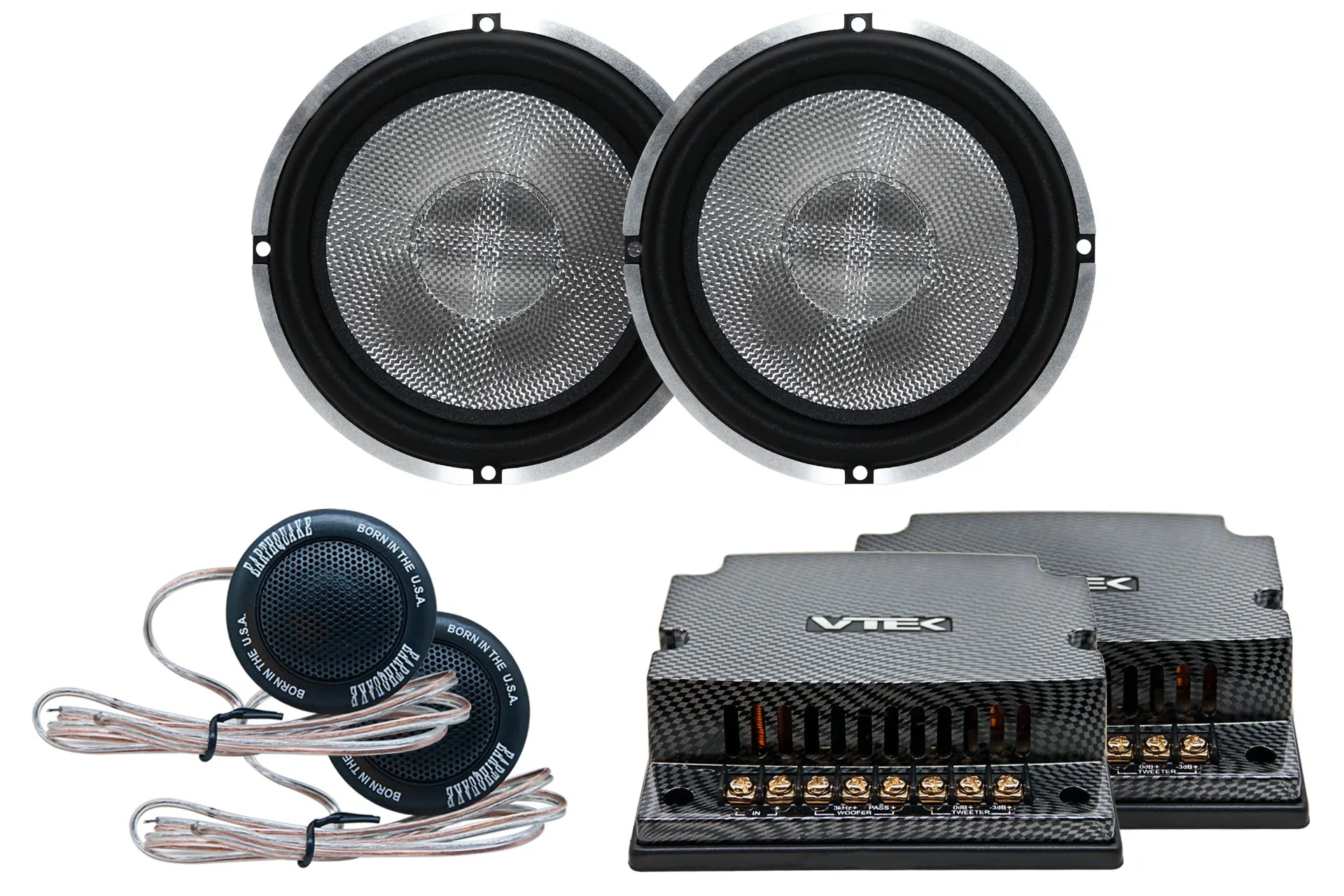

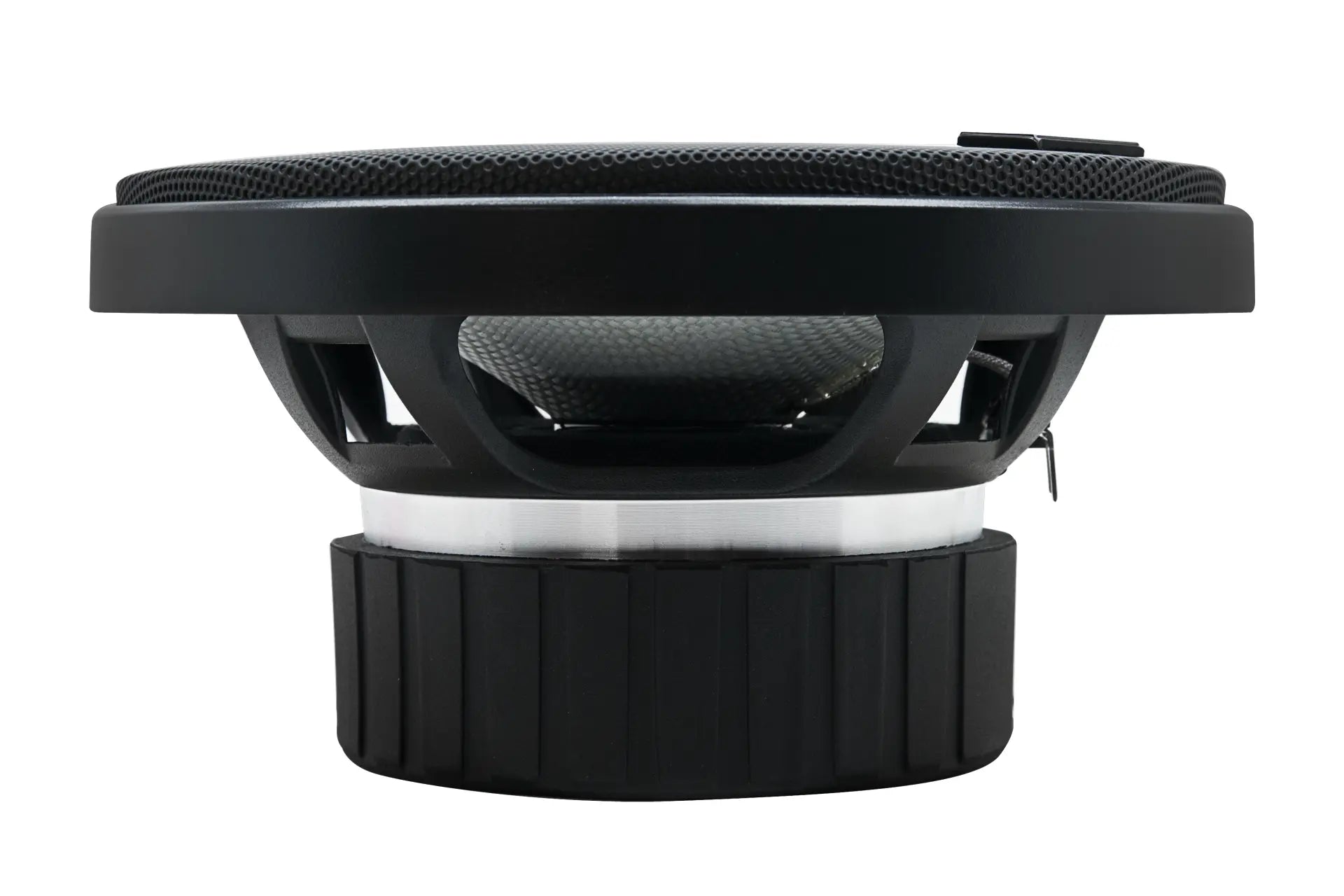

VTEK-MC6

Sold per set.

You’ll be hypnotized by the vibrant imaging of VTEK component systems. Expect shining clear sound and blazing performance, thanks to Earthquake’s combination of innovative materials and design.

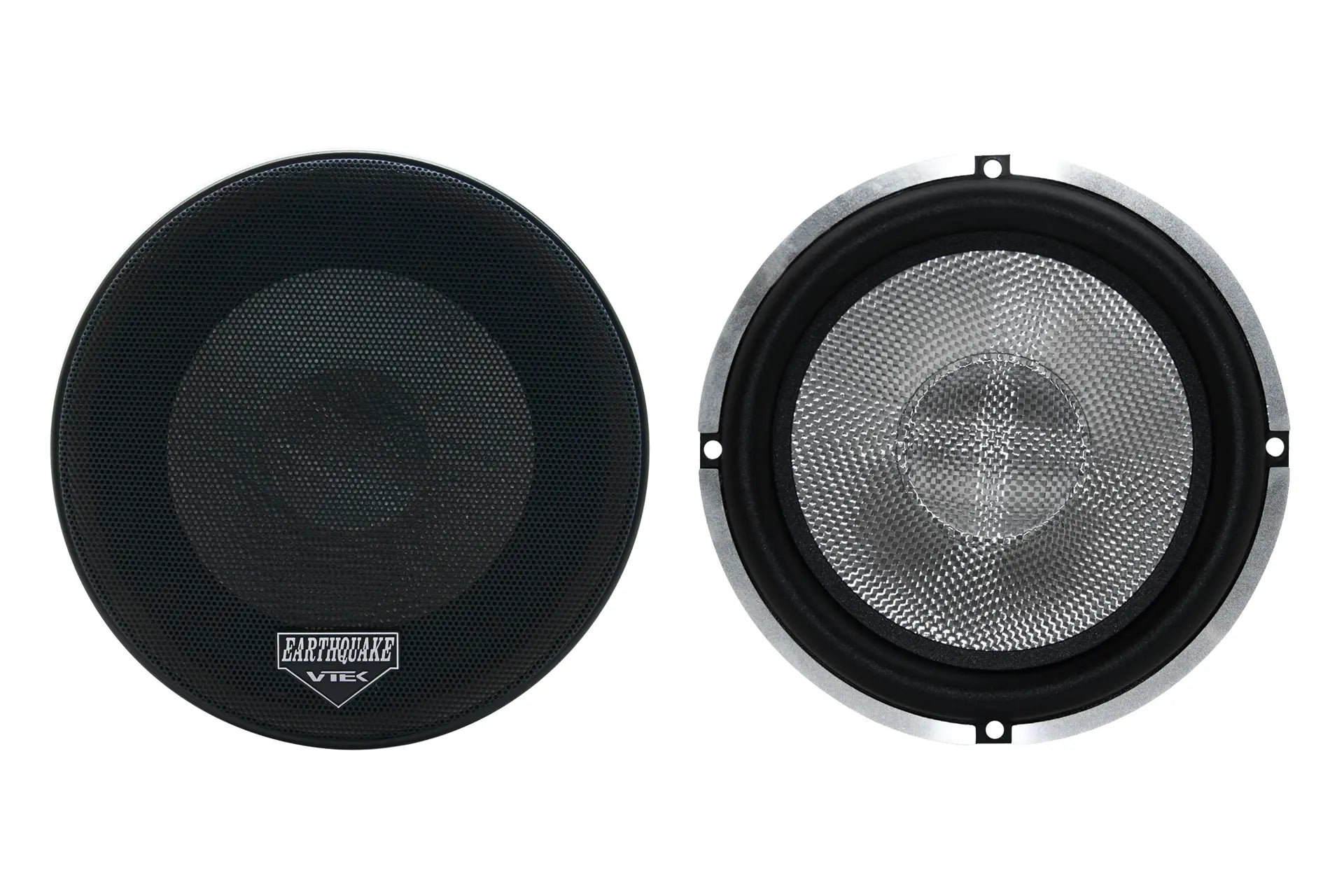

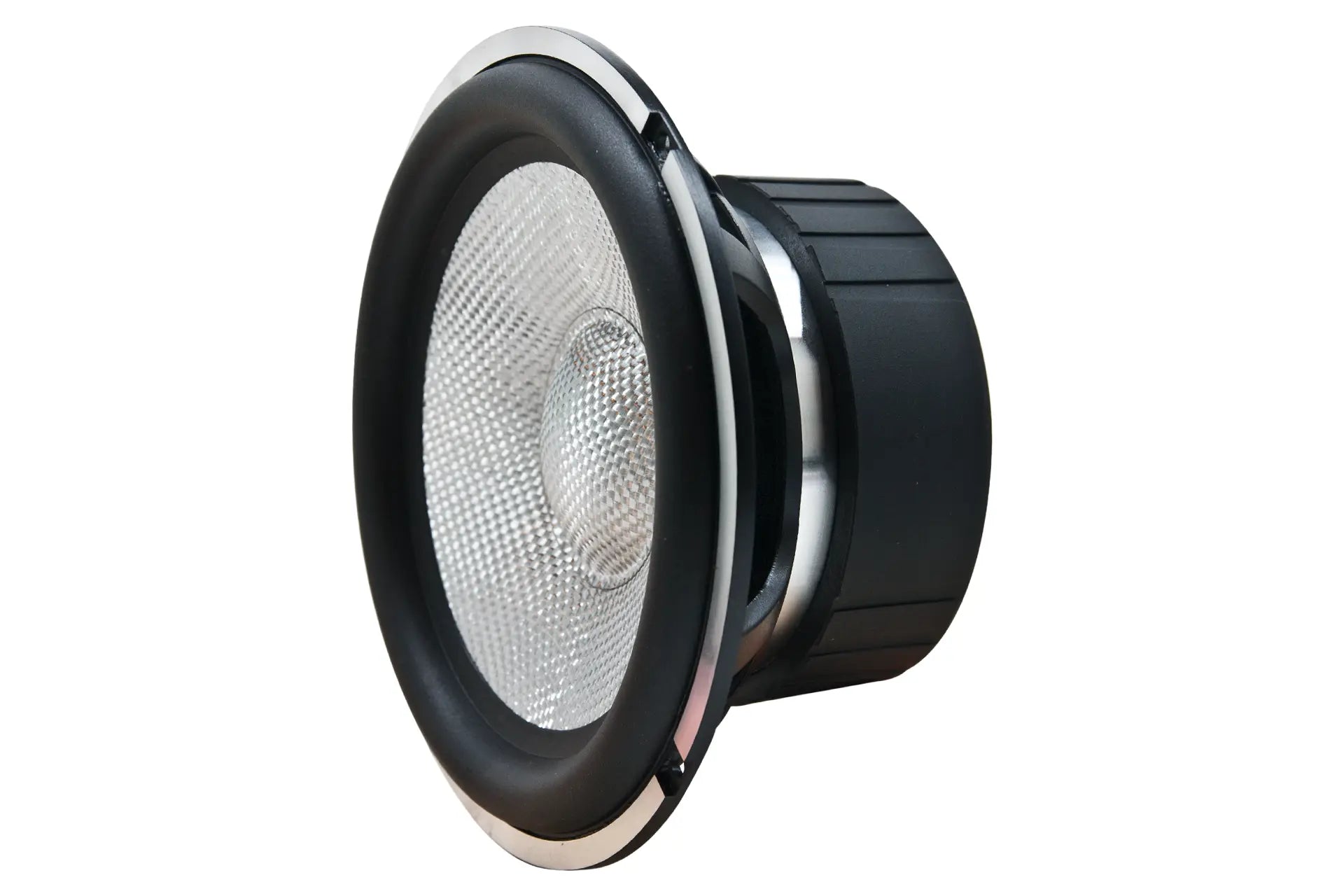

The Layered Electroplated Carbon Fiber woofer cones produce accurate, natural-sounding bass, thanks to a linear drive magnet design and the excellent sound-propagating qualities of the woofers’ low mass cone.

Bottom line, these are sound quality speakers designed to take the guessing game out of high-end speaker choices.
0,00 kr
0,00 kr

Specifications
Model Name: VTEK-MC6
EAN: 1550168975959

  • BL: 3.842 TM
  • Frequency Response: 40Hz - 23kHz (±3dB)
  • MAX Power: 600W

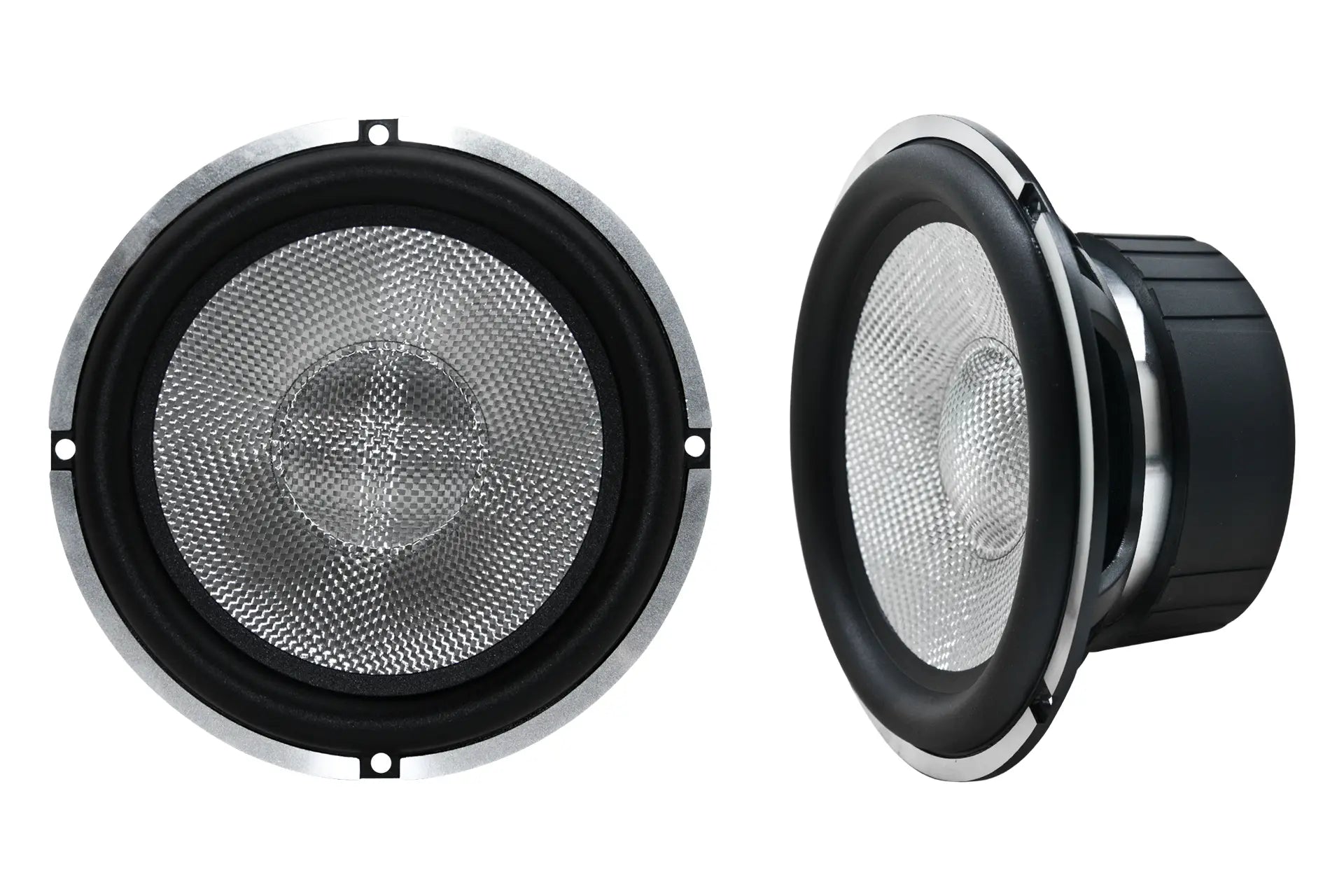

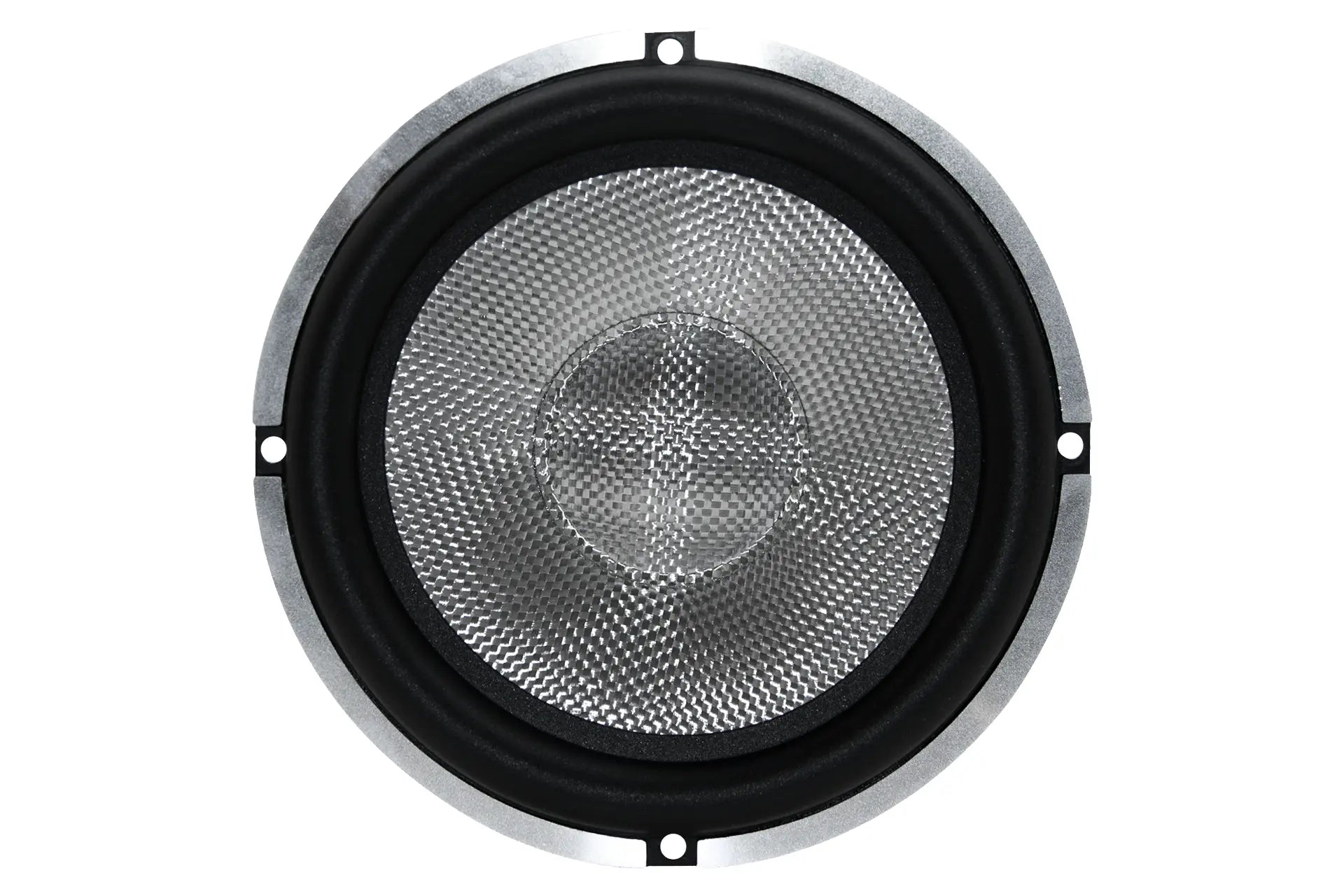

  • Midbass: 165mm / 25mm voice coil
  • Nominal Impedance: 4 ohm
  • Sensitivity: 91dB @ 1W/1M

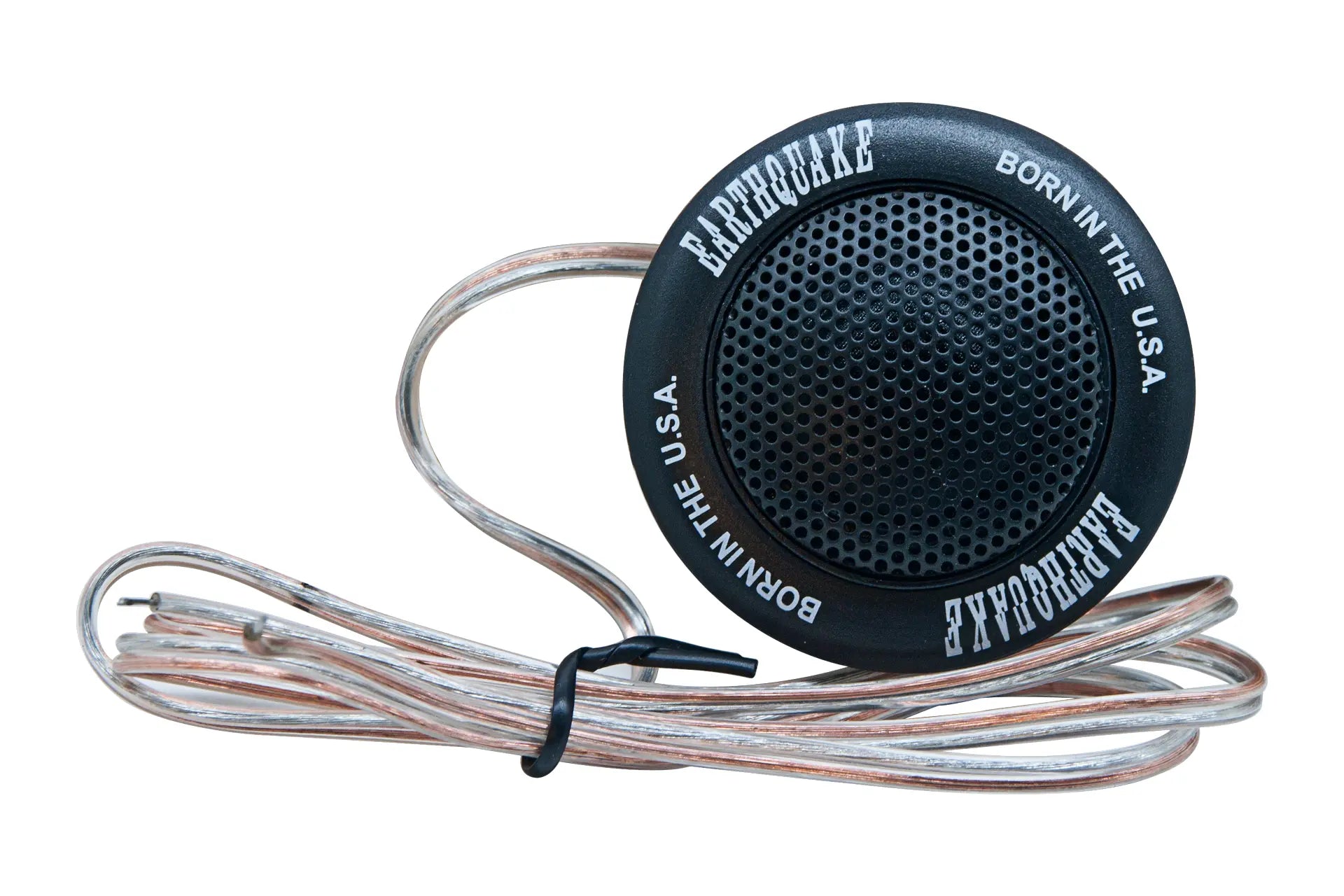

  • Tweeter: 25mm silk dome / neo magnet

Dimensions

  • Cut out hole: 146 mm

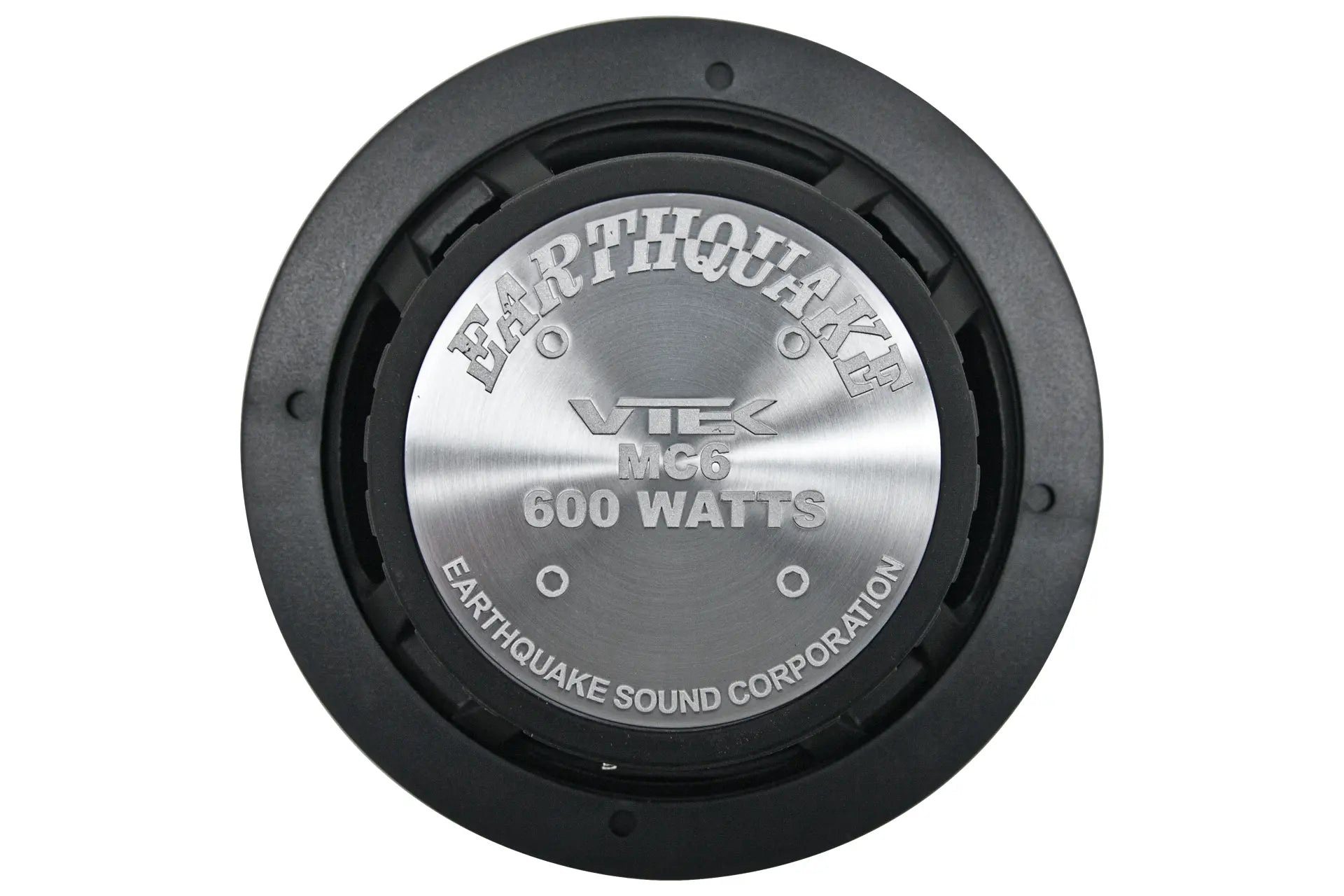

  • Magnet Width / Diameter: 102 mm

Parameters

  • Revc: 3.0000 Ohm
  • Sd: 12.500 msqM
  • Mmd: 13.878mKg
  • Krm: 724.664uOhm
  • Erm: 0.846
  • Kxm: 27.295mOhm
  • Exm: 0.493
  • Mms: 14.682g
  • Cms: 313.932uM/N
  • Vas: 245.979mcuFt
  • Fo: 74.133 Hz
  • Qms: 1.977
  • Qes: 1.390
  • Qts: 0.816
  • SPLo: 85.0dB
  • No: 0.197%

Box Dimensions: 11 × 50 × 36 cm
Box Weight: 5.125 kg

  • 12-db-per-octave slopes
  • 2-Way Speaker
  • Cast aluminum basket
  • Die Cast

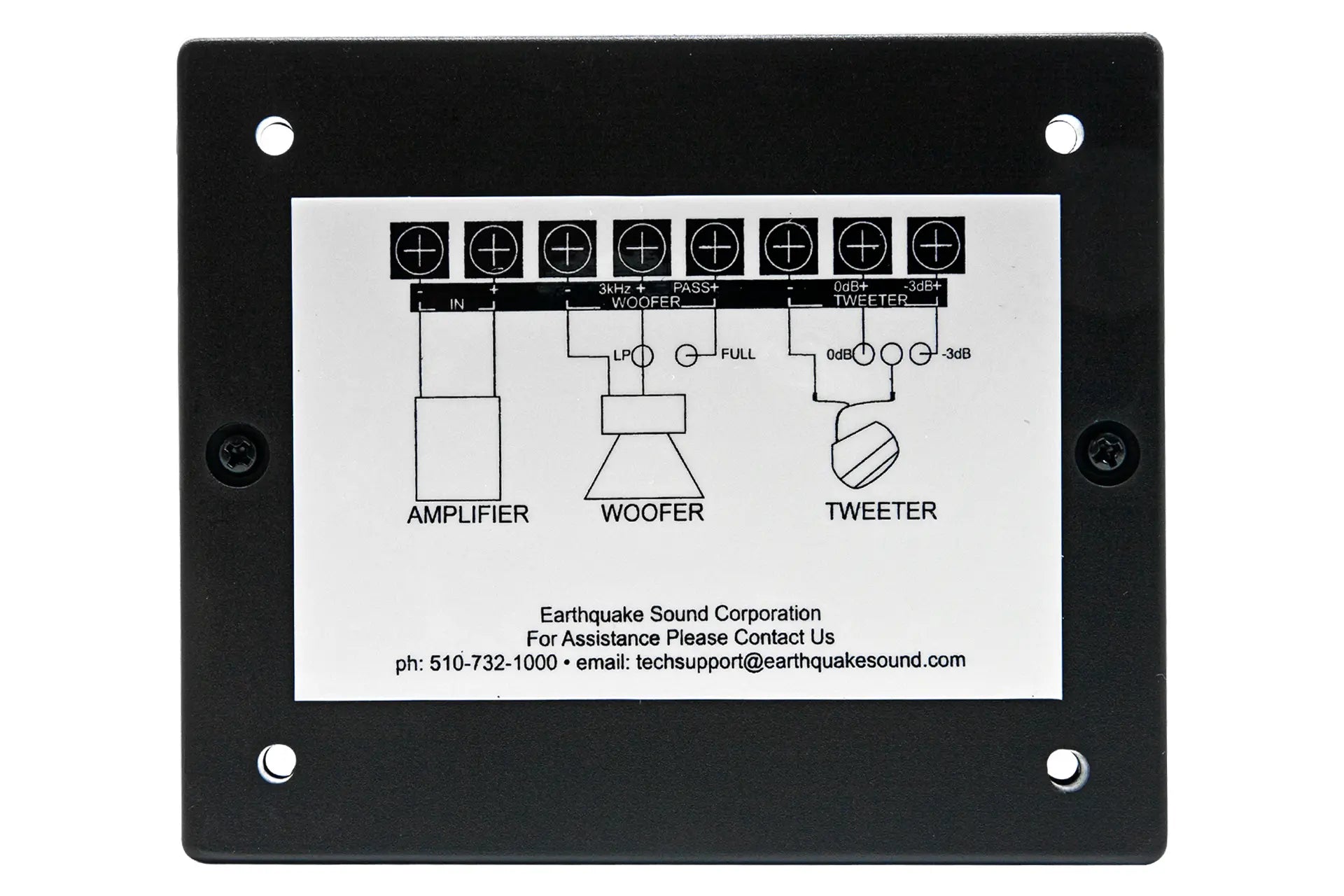

  • Flat or -3db tweeter connections

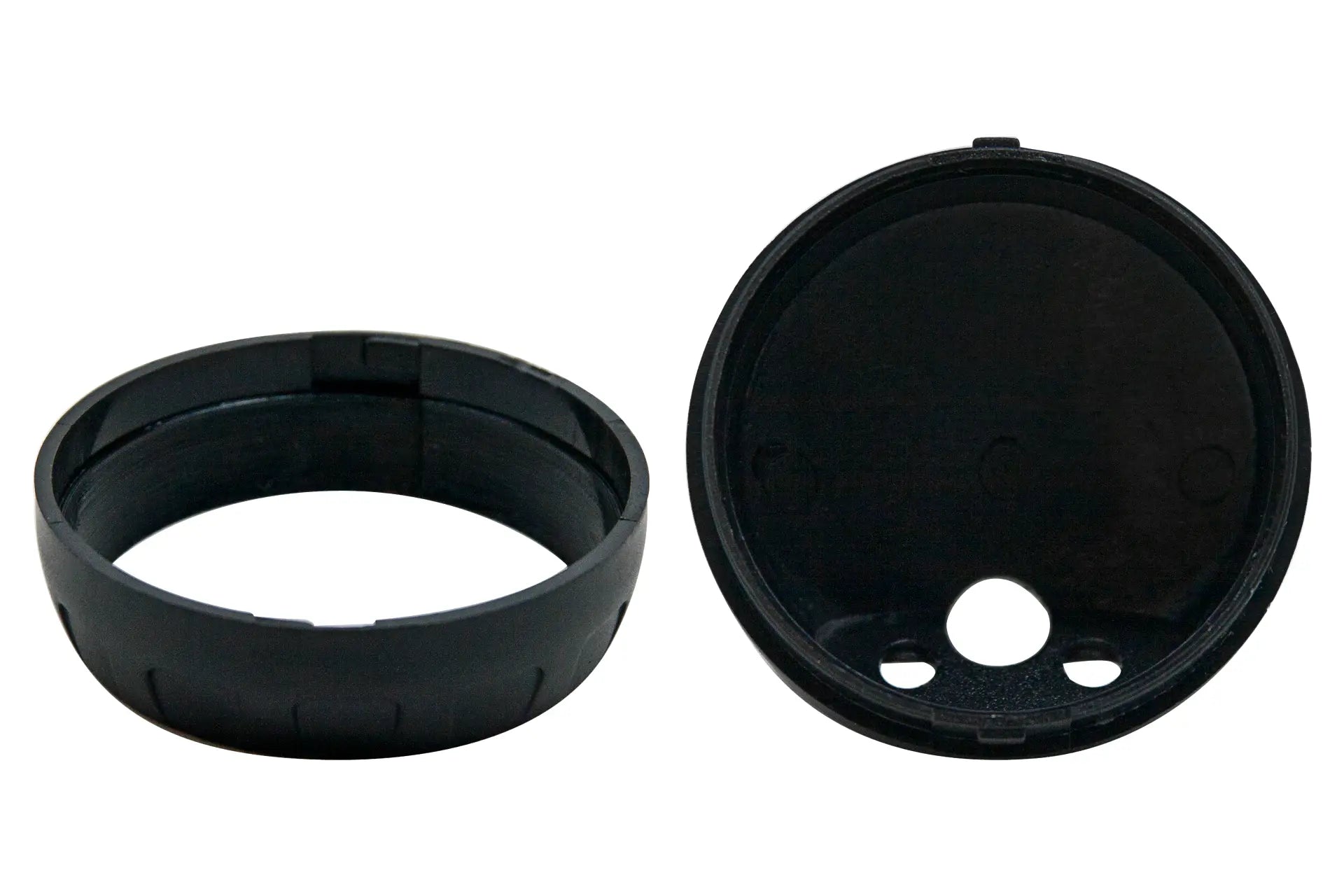

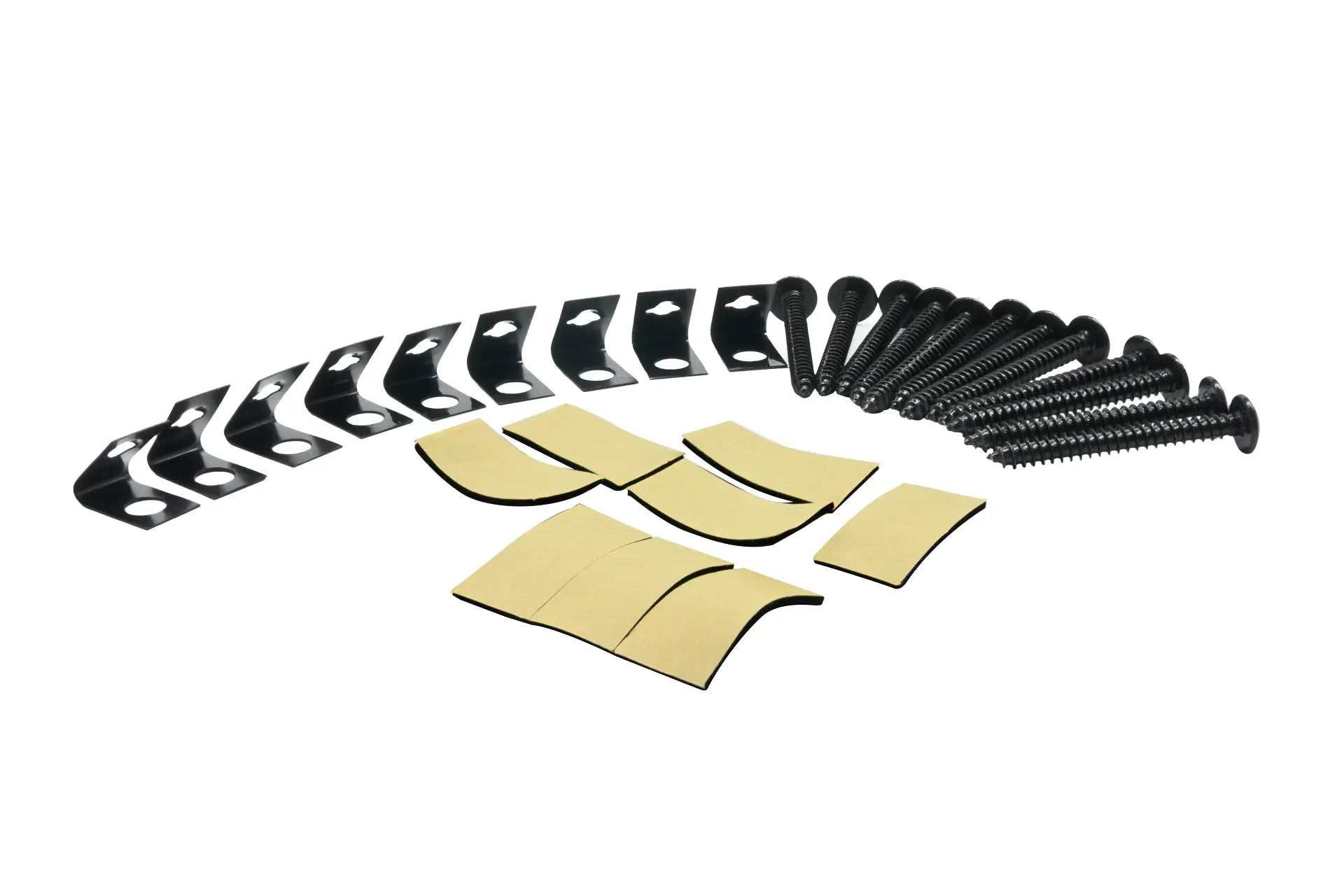

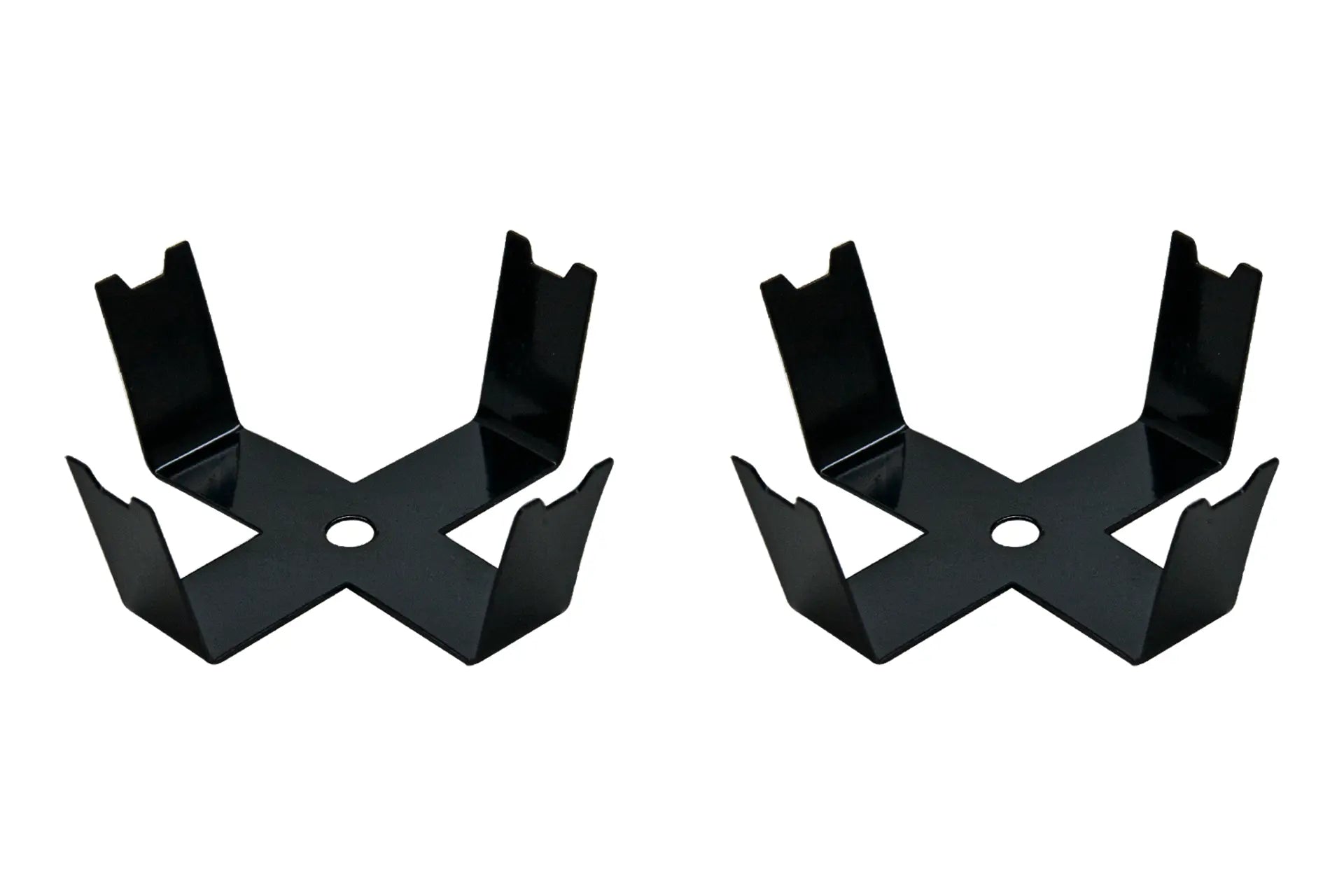

  • Four mounting options
  • High precision 1" silk dome tweeters

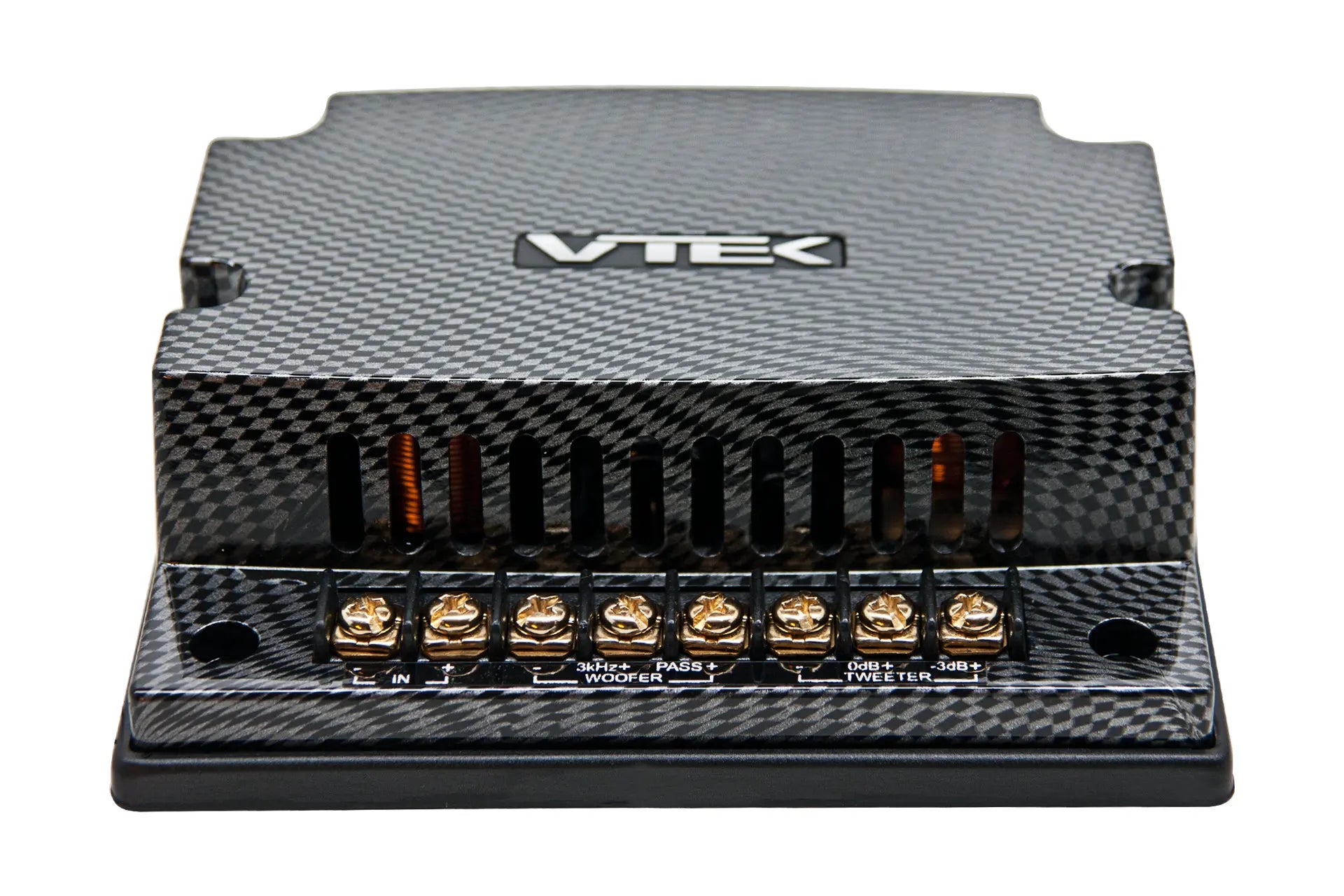

  • New carbon fiber styled crossover
  • Over-sized polypropylene crossover capacitors
  • Overhung rubber surround
  • Passive Xover

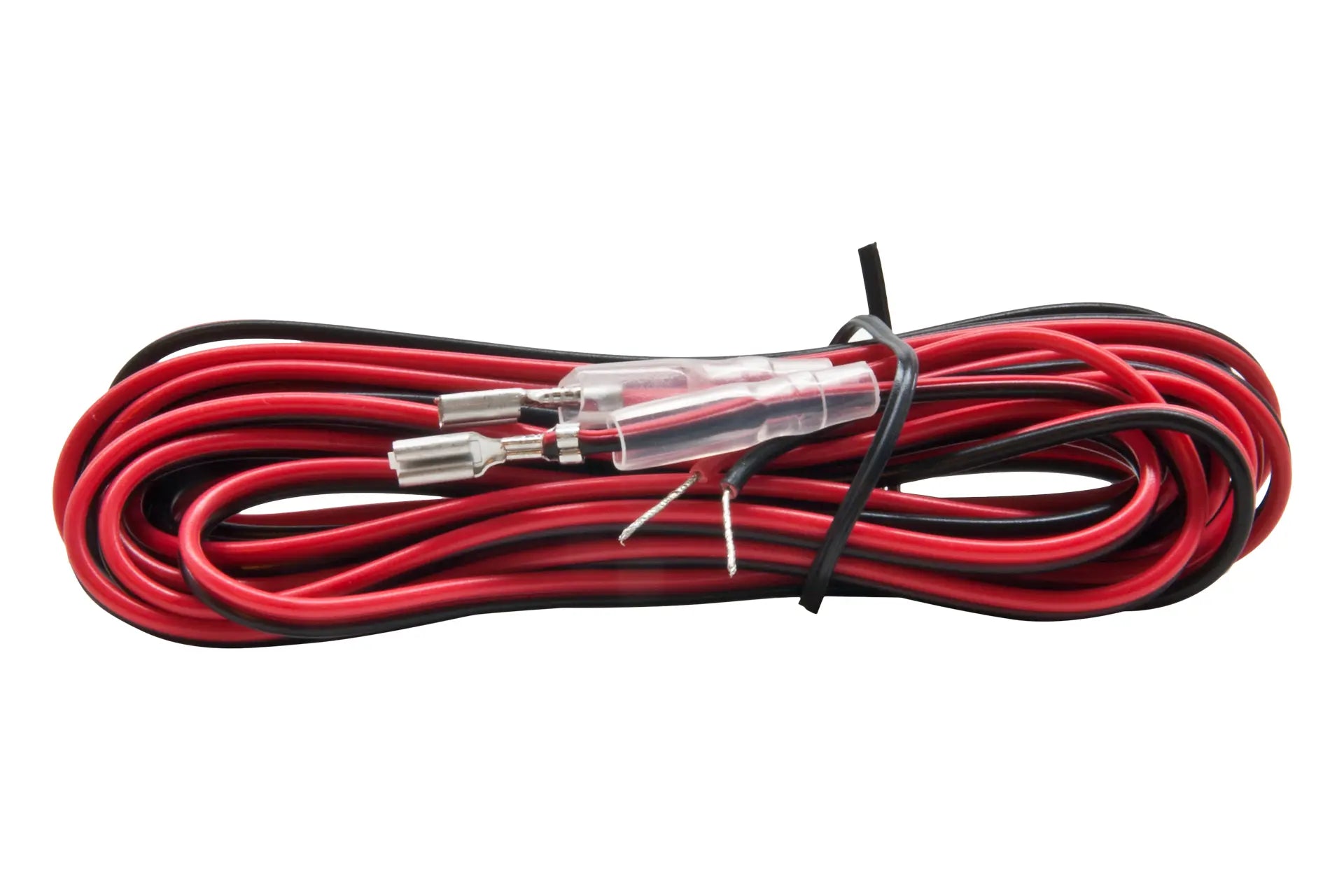

  • Speaker Wires
  • Tri-layer carbon fiber cone w/electro-plated aluminum surface sealer
